WIFO 180˚ Box Rotators and Box Turners

The WIFO box rotators work with a hydraulic cylinder instead of a hydraulic motor. This guarantees much faster and more trouble-free operation. Solid design combined with versatile usage makes WIFO box rotators suitable for most most commercial forklifts, pay loaders and front end loaders.

Faster and more efficient operation.

WIFO Box Rotators

Developed over 25 years ago by WIFO, Netherlands, it is the best selling box rotator in Europe. Their very solid design and 5500 or 7700 lbs capacity makes WIFO box rotators suitable for most commercial forklifts, pay loaders and front end loaders with Class II and III commercial carriage. Supplied with a heavy duty rotating shaft and industrial type bushings they all rotate 180° to the left and an integrated side shift is optional. Equipped with either a folding or manual removable side-arm any damage to your boxes will be prevented.

180˚ Class II/III Models (K53a/K53c)

  • Rotator with a rotation angle of 180° (left rotation as standard)
  • Extremely open construction for optimal visibility
  • Fixed or folding side tine
  • Fixed or folding tine adjustable in width
  • High quality tipping shaft with sleeve bearing
  • Complete with hydraulic hoses and quick couplers
  • Excluding control valve and forklift forks
  • Available with adaptor plates for front end loader and skid steer

Heavy Duty 180˚ Class II/III Models (K53a-z/K53c-z)

  • Rotator with a rotation angle of 180° (left rotation as standard)
  • High-quality threaded tipping shaft with adjustable ball bearing
  • Extremely open construction for optimal visibility
  • Folding side tine using gas spring
  • Folding side tine adjustable in width
  • Complete with hydraulic hoses and quick couplers
  • Equipped with balancing valve as standard

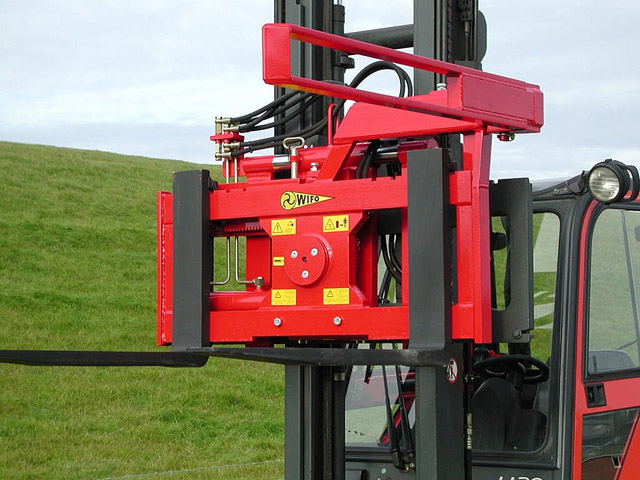

180˚ Class II/III Models with Side-shift
(DKB-25-S/DKD-35-S)

  • Rotator with a rotation angle of 180° (left rotation as standard)
  • Extremely open construction for optimal visibility
  • Folding side tine using gas spring
  • Folding side tine adjustable in width
  • High quality tipping shaft with sleeve bearing
  • Integrated side-shift (200 mm)
  • Complete with hydraulic hoses and quick couplers
  • Excluding control valve and forklift forks
  • Four-hose connection as standard, solenoid optional

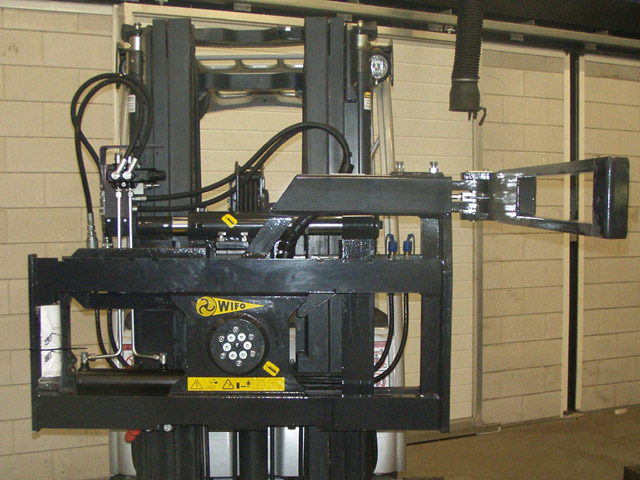

Heavy Duty 180˚ FEMII/III Models with Side Shift
(DKB-25-Z/DKD-35-Z)

  • Rotator with a rotation angle of 180° (left rotation as standard)
  • High-quality threaded tipping shaft with adjustable ball bearing
  • Integrated side-shift (200 mm)
  • Extremely open construction for optimal visibility
  • Folding side tine using gas spring
  • Folding side tine adjustable in width
  • Complete with hydraulic hoses and quick couplers
  • Equipped with balancing valve as standard
  • Excluding control valve and forklift forks
  • Four-hose connection as standard, solenoid optional
  • Finish lacquer: anthracite

Forward Tipping Class II/III Box Rotators

  • Forward tipping rotator with a forward tipping angle of either 135° or 180°
  • With quick-attach system suitable for FEM II and FEM III
  • Suitable for boxes with or without bottom deck
  • Box depth adjustable between 850 - 1250 mm
  • Box height adjustable between 800 - 1250 mm
  • Two fixed forks as standard
  • Four-hose connection as standard, solenoid optional
  • Complete with hydraulic hoses and quick couplers
